YHXe series Threading of explosion-proof box
Sitepath:Home > Products > Explosion-proof pipe fittings > Explosion-proof box threadingYHXe series Threading of explosion-proof boxes, the use of die-casting aluminum alloy or steel manufacturing, the surface of plain spray paint, apply a mixture of the danger of explosive places in the steel wire when wiring connections and a variety of curved lines by then.。
Structural characteristics | |||||||||
■ The use of cast aluminum alloy shell or cast steel, spraying paint or galvanized surface treatment; | |||||||||
■ Diverse structure, easy to install; | |||||||||
■ Adjustable and customizable; | |||||||||
Technical Data | |||||||||
■ Explosive gas environment: 1 zone, 2 zone, | |||||||||
■ Type of gas or steam: ⅡA, ⅡB, ⅡC | |||||||||
■ Implementation of standards: GB 3836.1, GB 3836.3,JB 9599 | |||||||||
■ Explosion-proof mark: Exe Ⅱ | |||||||||

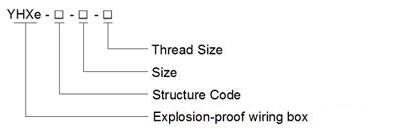

Model specifications |
■ Structure: | |||||||||
Code | Type | Code | Type | ||||||
E | All threading through | Y | Turn right pass threading box cover | ||||||
T | Threading links box | H | Back bend threading pass box | ||||||
S | Threading Stone Box | W | Bending threading pass box | ||||||
Z | Threading pass bends left box cover | HT | Threading links box rear cover | ||||||
■ Specificationsand connecting thread | |||||||||
Generally used to connect threaded pipe thread G, can be omitted, for the use of other threads to be marked such as the NPT, etc.。 | |||||||||
Specifications | ThreadG | Specifications | ThreadG | ||||||
15 | G1/2 | 40 | G11/2 | ||||||
20 | G3/4 | 50 | G2 | ||||||
25 | G1 | 70 | G21/2 | ||||||
32 | G11/4 | 80 | G3 |
