KMJd series of explosion-proof seal sheathed cable connector
Sitepath:Home > Products > Explosion-proof pipe fittings > Explosion-proof cable sealing jointsThe series explosion-proof cable sealing joints sheathed cables for the various explosion-proof electrical equipment introduced。
Technical Data | |||||||||
■ Danger zone: 1 zone, 2 zones, 21 zones, 22 zones | |||||||||
■ Type of gas or steam: ⅡA, ⅡB, ⅡC | |||||||||
■ Manufacturing materials: galvanized steel, brass (nickel), stainless steel | |||||||||
■ Implementation of standards: GB 3836.1, GB 3836.2, GB 3836.3, GB12476.1 | |||||||||
■ Explosion-proof mark: ExdⅡC / ExeⅡ / DIPA21 IP66 | |||||||||
■ Operating temperature: -20℃~80℃ | |||||||||
■ Protection level: IP66 |

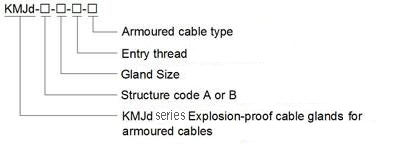

Model specifications |

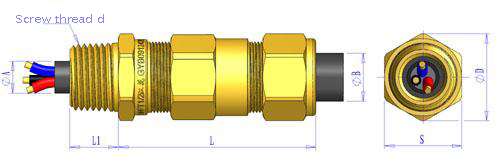

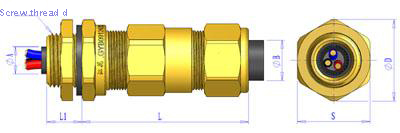

Selection specifications table - straight thread M,G |
Size |
|
|
|
|
D max |
L1 min |
L Max |
|||||
Available Entry Threads |
Cable Bedding Diameter |
Overall Cable Diameter |
Armour Range |
|||||||||
(W) |
(B) |
(T) |
||||||||||
M |
G |
Min |
Max |
Min |
Max |
Min-max |
Min-Max |
Min-Max |
||||
16 |
M16x1.5 |
G1/2 |
4 |
8.5 |
8 |
13.5 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
24.5 |
11 |
64 |
M20x1.5 |
G1/2 |
30 |
13 |
64 |
||||||||
20S |
M20x1.5 |
G1/2 |
7 |
11.5 |
10 |
16 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
30 |
15 |
64 |
20 |
M20x1.5 |
G1/2 |
10 |
14 |
15 |
21 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
33 |
15 |
72 |
25 |
M25x1.5 |
G3/4 |
13 |
19.5 |
18 |
26.5 |
1.25-1.60 |
0.2-0.4 |
0.3-0.6 |
41 |
15 |
81 |
32 |
M32X1.5 |
G1 |
19 |
26 |
24 |
33.5 |
1.6-2.0 |
0.3-0.5 |
0.3-0.6 |
50 |
15 |
94 |
40 |
M40x1.5 |
G11/4 |
24 |
32 |
30 |
40.5 |
1.6-2.0 |
0.3-0.5 |
0.5-1.0 |
60 |
15 |
107 |
50S |
M50x1.5 |
G11/2 |
30 |
38 |
36 |
46 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
65 |
15 |
116 |
50 |
M50x1.5 |
G2 |
37 |
43.5 |
42 |
53.5 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
75 |
15 |
120 |
Selection of specifications-NPT taper thread |
|||||||||||
Size |
|
|
|
|
D max |
L1 min |
L Max |
||||
Available Entry Threads |
Cable Bedding Diameter |
Overall Cable Diameter |
Armour Range |
||||||||
(W) |
(B) |
(T) |
|||||||||
NPT |
Min |
Max |
Min |
Max |
Min-max |
Min-Max |
Min-Max |
||||
16 |
NPT1/2 |
4 |
8.5 |
8 |
13.5 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
24.5 |
15 |
64 |
20S |
NPT1/2 |
7 |
11.5 |
10 |
16 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
30 |
15 |
64 |
20 |
NPT1/2 |
10 |
14 |
15 |
21 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
33 |
15 |
73 |
NPT3/4 |
|||||||||||
25 |
NPT3/4 |
13 |
19.5 |
18 |
26.5 |
1.25-1.60 |
0.2-0.4 |
0.3-0.6 |
41 |
15 |
85 |
NPT1 |
18 |
||||||||||
32 |
NPT1 |
19 |
26 |
24 |
33.5 |
1.6-2.0 |
0.3-0.5 |
0.3-0.6 |
50 |
19 |
96 |
40 |
NPT11/4 |
24 |
32 |
30 |
40.5 |
1.6-2.0 |
0.3-0.5 |
0.5-1.0 |
60 |
20 |
107 |
50S |
NPT11/2 |
30 |
38 |
36 |
46 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
65 |
20 |
118 |
NPT2 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
22 |
|||||||
50 |
NPT2 |
37 |
43.5 |
42 |
53.5 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
75 |
22 |
122 |
