NGe by an explosion-proof flexible connection tube
Sitepath:Home > Products > Explosion-proof pipe fittings > Explosion-proof flexible tube
NGe series by an explosion-proof flexible tube used to connect plastic flat package for metal hose jacket, factory applied to the explosive mixture with Q-2 level place, as explosion-proof electrical equipment connected into the round tube.
Technical Data
■ explosive gas environment: 1 zone, 2 zones, ■ type of gas or steam: Ⅱ type ■ the implementation of the standards: GB 3836.1, GB 3836.3, JB 9600 ■ Explosion-proof mark: Exe Ⅱ ■ temperature range use: -20 ℃ ~ +60 ℃ |
|||||||
|
|
|
|
||||

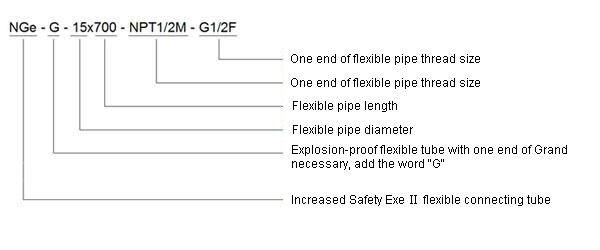

Model specifications |
Specification parameters | |||||||
Serial number
|
Flexible tube models
|
Path control (mm)
|
LengthL (mm)
|
Thread Interface Specification
|
Minimum bend radius (mm)
|
||
G
|
NPT
|
M
|
|||||
1
|
NGe-□-13×700
|
13
|
700
|
1/2
|
1/2
|
M18×1.5
|
80
|
M20×1.5
|
|||||||
2
|
NGe-□-15×700
|
15
|
700
|
1/2
|
1/2
|
M20×1.5
|
80
|
M22x1.5
|
|||||||
3
|
NGe-□-20×700
|
20
|
700
|
3/4
|
3/4
|
M24×1.5
|
110
|
M27×1.5
|
|||||||
4
|
NGe-□-25×700
|
25
|
700
|
1
|
1
|
M32×1.5
|
145
|
5
|
NGe-□-32×1000
|
32
|
1000
|
11/4
|
11/4
|
M40×1.5
|
180
|
6
|
NGe-□-40×1000
|
40
|
1000
|
11/2
|
11/2
|
M52×1.5
|
210
|
7
|
NGe-□-50×1200
|
50
|
1200
|
2
|
2
|
M60×1.5
|
250
|
