NGZFlexible connection tube dust waterproof
Sitepath:Home > Products > Explosion-proof pipe fittings > Explosion-proof flexible tube
Structural characteristics | |||||||
■ the use of plastic hose package for the protection of the casing, has a good water-proof dust-proof performance;
■ Flexible tube length, thread based on user requirements specifications; ■ with a flame-retardant, anti-corrosion, good flexibility, easy installation and maintenance. |
|||||||
|

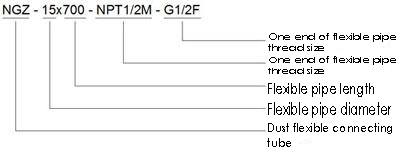

Model specifications |
|||||||
Serial number |
Flexible tube models |
Path control (mm) |
LengthL (mm) |
Thread Interface Specification |
Minimum bend radius (mm) |
||
G |
NPT |
M |
|||||
1 |
NGZ-13×700 |
13 |
700 |
1/2 |
1/2 |
M18×1.5 |
80 |
M20×1.5 |
|||||||
2 |
NGZ-15×700 |
15 |
700 |
1/2 |
1/2 |
M20×1.5 |
80 |
M22x1.5 |
|||||||
3 |
NGZ-20×700 |
20 |
700 |
3/4 |
3/4 |
M24×1.5 |
110 |
M27×1.5 |
|||||||
4 |
NGZ-25×700 |
25 |
700 |
1 |
1 |
M32×1.5 |
145 |
5 |
NGZ-32×1000 |
32 |
1000 |
11/4 |
11/4 |
M40×1.5 |
180 |
6 |
NGZ-40×1000 |
40 |
1000 |
11/2 |
11/2 |
M52×1.5 |
210 |
7 |
NGZ-50×1200 |
50 |
1200 |
2 |
2 |
M60×1.5 |
250 |
